SAA Fire Cable

Essential information

Brand: LLT
Place of origin: Shenzhen, China
Specification: 100M / 500m per roll
Packaging method: roll / wooden shaft / carton / pallet
Place of shipment: Shenzhen
Mode of transportation: Sea / land / air
Payment method:T / T, L / C, D / P
Starting quantity: 5000m
Daily production: 1000000m
Other services:OEM/ODM

PARAMETER TABLE of Power Cable

SJT、SJTO、SJTW、SJTOW （300V）

ST、STO、STW、STOW（600V）

SVT、SVTO （300V）

Product overview of Power Cable：

UL62 flexible power cord adopts thermoplastic (PVC) insulated and PVC sheathed flexible cable. This cable is used to connect household appliances to fixed power supply.

CONSTRUCTION of Power Cable

Conductor:

18AWG-2AWG: conductor according to ASTM B3 or NMX-J-036-ANCE and ASTM B33 or NMX-J-008-ANCE.

Insulation: PVC

Sheath: PVC

STANDARDS of Power Cable

✮Generally to UL62
✮Cables are thoroughly tested under UL Meihua testing agency in our accredited lab prior to delivery.
✮The lab is audited by UL as an independent 3rd party to verify that the testing procedures and the cable meet the standards and are fit for purpose

CHARACTERISTICS of Power Cable

Voltage Rating:300V、600V

Temperature limits: -40°C to +105°C

Minimum Bending Radius: 10～15 times cable outer diameter

Should not be installed at temperatures below 0°C or above+40°C

For more information, please consult members of the lilutong wire and cable sales team

Outer sheath comes in a choice of:

Outer sheath color:

GreyWhiteBlack

E-Bare Earth conductor:

2 core

BlackWhite

3 core

GreenBlackWhite

or

GreenBlackRed

or

BrownBlueGreenYellow

4 core

GreenBlackGreyRedWhite

or

GreenBlackGreyRedBlue

Product Application of Power Cable

It is suitable for power connection of various household appliances, mobile appliances, various instruments and power lighting. It can be used in Germany, France, the Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Spain, Sweden and other EU countries, as well as South Korea, Russia and other countries.

Packaging information

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

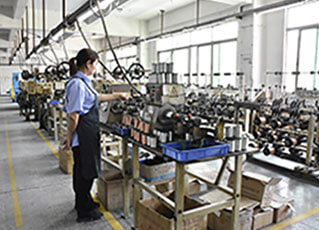

factory information

Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection
Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
7*24 hours after-sales service-professionals provide you with services and consultations around the clock
We can also provide OEM and ODM services

No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation（mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 15℃ GΩ.m（MΩ·1000ft）
No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation（mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC	Min. Insulation Resistance at 15℃ GΩ.m（MΩ·1000ft）
2×18	0.76	0.76	7.11	8	22.4	23.6	52(170)
2×17	0.76	0.76	7.24	8.26	17.8	18.7	50(160)
2×16	0.76	0.76	7.75	8.64	14.1	14.9	45(150)
2×15	0.76	0.76	8	8.89	11.2	11.5	41(137)
2×14	0.76	0.76	8.51	9.53	8.88	9.34	36(120)
2×13	0.76	0.76	8.76	9.91	7.02	7.39	34(113)
2×12	0.76	1.14	10.3	11.6	5.58	5.88	30(95)
2×11	0.76	1.14	10.6	11.9	4.43	4.79	28(92)
2×10	1.14	1.52	13.7	15.4	3.51	3.7	34(110)
3×18	0.76	0.76	7.62	8.51	22.4	23.6	52(170)
3×17	0.76	0.76	7.75	8.76	17.8	18.7	50(160)
3×16	0.76	0.76	8.26	9.14	14.1	14.9	45(150)
3×15	0.76	0.76	8.51	9.52	11.2	11.5	41(137)
3×14	0.76	0.76	9.14	10	8.88	9.34	36(120)
3×13	0.76	0.76	9.4	10.5	7.02	7.39	34(113)
3×12	0.76	1.14	10.8	12.1	5.58	5.88	30(95)
3×11	0.76	1.14	11.3	12.6	4.43	4.79	28(92)
3×10	1.14	1.52	14.1	16.1	3.51	3.7	34(110)
4×18	0.76	0.76	8.26	9.27	22.4	23.6	52(170)
4×17	0.76	0.76	8.64	9.65	17.8	18.7	50(160)
4×16	0.76	0.76	8.89	10	14.1	14.9	45(150)
4×15	0.76	0.76	9.4	10.54	11.2	11.5	41(137)
4×14	0.76	0.76	9.91	11	8.88	9.34	36(120)
4×13	0.76	0.76	10.3	11.4	7.02	7.39	34(113)
4×12	0.76	1.14	11.8	13.2	5.58	5.88	30(95)
4×11	0.76	1.14	12.3	13.6	4.43	4.79	28(92)
4×10	1.14	1.52	15.9	17.8	3.51	3.7	34(110)
5×18	0.76	0.76	——	——	22.4	23.6	52(170)
5×17	0.76	0.76	——	——	17.8	18.7	50(160)
5×16	0.76	0.76	——	——	14.1	14.9	45(150)
5×15	0.76	0.76	——	——	11.2	11.5	41(137)
5×14	0.76	0.76	——	——	8.88	9.34	36(120)
5×13	0.76	0.76	——	——	7.02	7.39	34(113)
5×12	0.76	1.14	——	——	5.58	5.88	30(95)
5×11	0.76	1.14	——	——	4.43	4.79	28(92)
5×10	1.14	1.52	——	——	3.51	3.7	34(110)
6×18	0.76	0.76	——	——	22.4	23.6	52(170)
6×17	0.76	0.76	——	——	17.8	18.7	50(160)
6×16	0.76	0.76	——	——	14.1	14.9	45(150)
6×15	0.76	0.76	——	——	11.2	11.5	41(137)
6×14	0.76	0.76	——	——	8.88	9.34	36(120)
6×13	0.76	0.76	——	——	7.02	7.39	34(113)
6×12	0.76	1.14	——	——	5.58	5.88	30(95)
6×11	0.76	1.14	——	——	4.43	4.79	28(92)
6×10	1.14	1.52	——	——	3.51	3.7	34(110)

No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter（mm）		Max. Conductor Resistance at 20℃（Ω/KM）		Min. Insulation Resistance at 15℃ GΩ.m（MΩ·1000ft）
No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC	Min. Insulation Resistance at 15℃ GΩ.m（MΩ·1000ft）
2×18	0.76	1.52	8.64	9.78	22.4	23.6	52(170)
2×17	0.76	1.52	8.89	9.91	17.8	18.7	50(160)
2×16	0.76	1.52	9.27	10.4	14.1	14.9	45(150)
2×15	0.76	2.03	12.07	13.46	11.2	11.5	54(173)
2×14	1.14	2.03	12.6	14	8.88	9.34	50(160)
2×13	1.14	2.03	12.84	14.2	7.02	7.39	45(149)
2×12	1.14	2.41	14.4	15.9	5.58	5.88	40(130)
2×11	1.14	2.41	14.7	16.6	4.43	4.79	38(125)
2×10	1.14	2.41	15.6	17.4	3.51	3.7	34(110)
2×9	1.14	2.41	16.1	18.3	2.78	3.03	32(106)
2×8	1.52	2.79	19.8	22.4	2.23	2.35	34(110)
2×7	1.52	3.17	21.8	24.3	1.77	1.86	31(101)
2×6	1.52	3.17	23.4	26.7	1.4	1.48	29(95)
2×5	1.52	3.56	25.2	29.2	1.11	1.17	26(85)
2×4	1.52	3.56	26.9	30.7	0.882	0.928	24(80)
2×3	1.52	3.94	29.2	33	0.7	0.736	21(70)
2×2	1.52	3.94	30.7	35.6	0.555	0.584	20(65)
3×18	0.76	1.52	9.14	10.2	22.4	23.6	52(170)
3×17	0.76	1.52	9.4	10.54	17.8	18.7	50(160)
3×16	0.76	1.52	9.78	10.9	14.1	14.9	45(150)
3×15	0.76	2.03	12.7	14.22	11.2	11.5	54(173)
3×14	1.14	2.03	13.56	14.6	8.88	9.34	50(160)
3×13	1.14	2.03	13.6	15	7.02	7.39	45(149)
3×12	1.14	2.41	15	16.6	5.58	5.88	40(130)
3×11	1.14	2.41	15.5	17.1	4.43	4.79	38(125)
3×10	1.14	2.41	16.5	18.3	3.51	3.7	34(110)
3×9	1.14	2.41	17	19.2	2.78	3.03	32(106)
3×8	1.52	2.79	21.1	23.6	2.23	2.35	34(110)
3×7	1.52	3.17	23	25.6	1.77	1.86	31(101)
3×6	1.52	3.17	24.6	27.9	1.4	1.48	29(95)
3×5	1.52	3.56	26.7	30.5	1.11	1.17	26(85)
3×4	1.52	3.56	28.7	32.5	0.882	0.928	24(80)
3×3	1.52	3.94	31	34.8	0.7	0.736	21(70)
3×2	1.52	3.94	33	38.1	0.555	0.584	20(65)
4×18	0.76	1.52	9.78	10.9	22.4	23.6	52(170)
4×17	0.76	1.52	10.16	11.3	17.8	18.7	50(160)
4×16	0.76	1.52	10.4	11.7	14.1	14.9	45(150)
4×15	0.76	2.03	13.72	15.94	11.2	11.5	54(173)
4×14	1.14	2.03	14.2	15.7	8.88	9.34	50(160)
4×13	1.14	2.03	14.6	16	7.02	7.39	45(149)
4×12	1.14	2.41	16.3	18	5.58	5.88	40(130)
4×11	1.14	2.41	16.7	18.4	4.43	4.79	38(125)
4×10	1.14	2.41	17.8	19.7	3.51	3.7	34(110)
4×9	1.14	2.41	18.4	20.6	2.78	3.03	32(106)
4×8	1.52	3.17	23.5	26.7	2.23	2.35	34(110)
4×7	1.52	3.17	25	28.9	1.77	1.86	31(101)
4×6	1.52	3.56	26.7	30.5	1.4	1.48	29(95)
4×5	1.52	3.56	29.2	33	1.11	1.17	26(85)
4×4	1.52	3.94	31.8	36.8	0.882	0.928	24(80)
4×3	1.52	3.94	33.8	38.9	0.7	0.736	21(70)
4×2	1.52	4.32	36.8	41.9	0.555	0.584	20(65)
5×18	0.76	2.03	11.7	13	22.4	23.6	52(170)
5×17	0.76	2.03	11.81	13.561	17.8	18.7	50(160)
5×16	0.76	2.03	12.5	14	14.1	14.9	45(150)
5×15	0.76	2.41	15.62	17.52	11.2	11.5	54(173)
5×14	1.14	2.41	16	17.9	8.88	9.34	50(160)
5×13	1.14	2.41	16.7	18.2	7.02	7.39	45(149)
5×12	1.14	2.41	17.8	19.6	5.58	5.88	40(130)
5×11	1.14	2.41	18.3	20.1	4.43	4.79	38(125)
5×10	1.14	2.41	19.3	21.3	3.51	3.7	34(110)
5×9	1.14	2.41	20.2	22.4	2.78	3.03	32(106)
5×8	1.52	3.17	25.4	29.2	2.23	2.35	34(110)
5×7	1.52	3.17	27.4	31.2	1.77	1.86	31(101)
5×6	1.52	3.56	30	33.8	1.4	1.48	29(95)
5×5	1.52	3.56	31.8	35.6	1.11	1.17	26(85)
5×4	1.52	3.94	——	——	0.882	0.928	24(80)
5×3	1.52	3.94	——	——	0.7	0.736	21(70)
5×2	1.52	4.32	——	——	0.555	0.584	20(65)
6×18	0.76	2.03	——	——	22.4	23.6	52(170)
6×17	0.76	2.03	——	——	17.8	18.7	50(160)
6×16	0.76	2.03	——	——	14.1	14.9	45(150)
6×15	0.76	2.41	——	——	11.2	11.5	54(173)
6×14	1.14	2.41	——	——	8.88	9.34	50(160)
6×13	1.14	2.41	——	——	7.02	7.39	45(149)

No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃（Ω/KM）
No.of cores×Nominal cross section (AWG)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC
2×18	0.38	0.76	5.59	6.48	22.4	23.6
2×17	0.38	0.76	6.35	7.24	17.8	18.7
2×16	0.38	0.76	6.22	7.11	14.1	14.9
3×18	0.38	0.76	5.84	6.73	22.4	23.6
3×17	0.38	0.76	6.35	7.24	17.8	18.7
3×16	0.38	0.76	6.6	7.49	14.1	14.9
4×18	0.38	0.76	——	——	22.4	23.6
4×17	0.38	0.76	——	——	17.8	18.7
4×16	0.38	0.76	——	——	14.1	14.9
5×18	0.38	0.76	——	——	22.4	23.6
5×17	0.38	0.76	——	——	17.8	18.7
5×16	0.38	0.76	——	——	14.1	14.9
6×18	0.38	0.76	——	——	22.4	23.6
6×17	0.38	0.76	——	——	17.8	18.7
6×16	0.38	0.76	——	——	14.1	14.9
