Fire Proof Armorde LSZH Cable

Essential information

Brand: LLT
Place of origin: Shenzhen, China
Specification: 100M / 500m per roll
Packaging method: roll / wooden shaft / carton / pallet
Place of shipment: Shenzhen
Mode of transportation: Sea / land / air
Payment method:T / T, L / C, D / P
Starting quantity: 5000m
Daily production: 1000000m
Other services:OEM/ODM

Product overview of Fire resistant armored cable：

National and Regional Model Display
Chinese standard	UL standard	BS standard	CE standard	GOST/EAC standard
NH-YJV22	UL1569	BS 5467	EN 50288-7	KBn3oKr-5e
WDNA-YJY23	UL4	BS 6883	EN 50362	BBTHr(A)-LS
NA-YJV22				nBNrHr(A)-LS
NH-KVV22

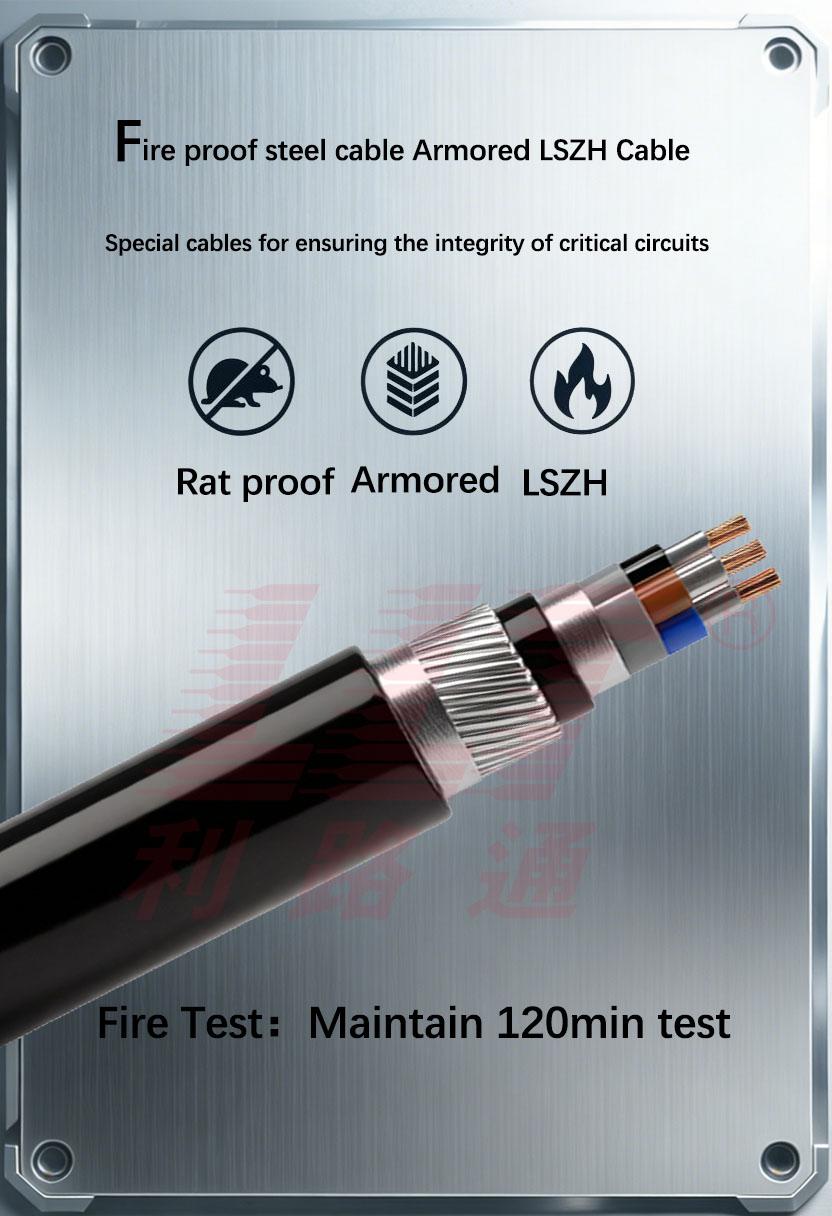

Fire Test: Maintain 120min test

Fire protection system: fire alarm system, fire elevator, power transmission of escalators
Public cable: emergency light system, tunnel, Sewage treatment system wiring;Highrise buliding:

Fire proof cable line, emergency cable line

Industrial: power station,communicaton power cable.

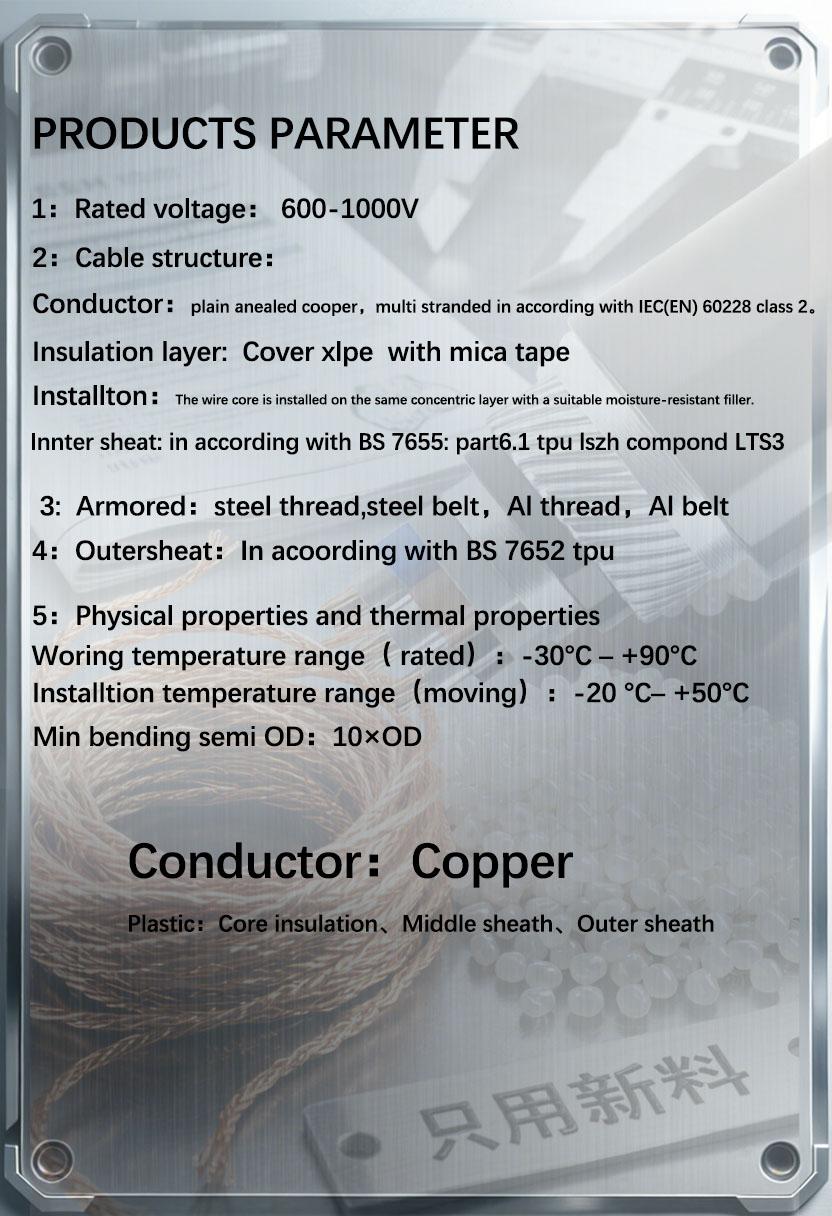

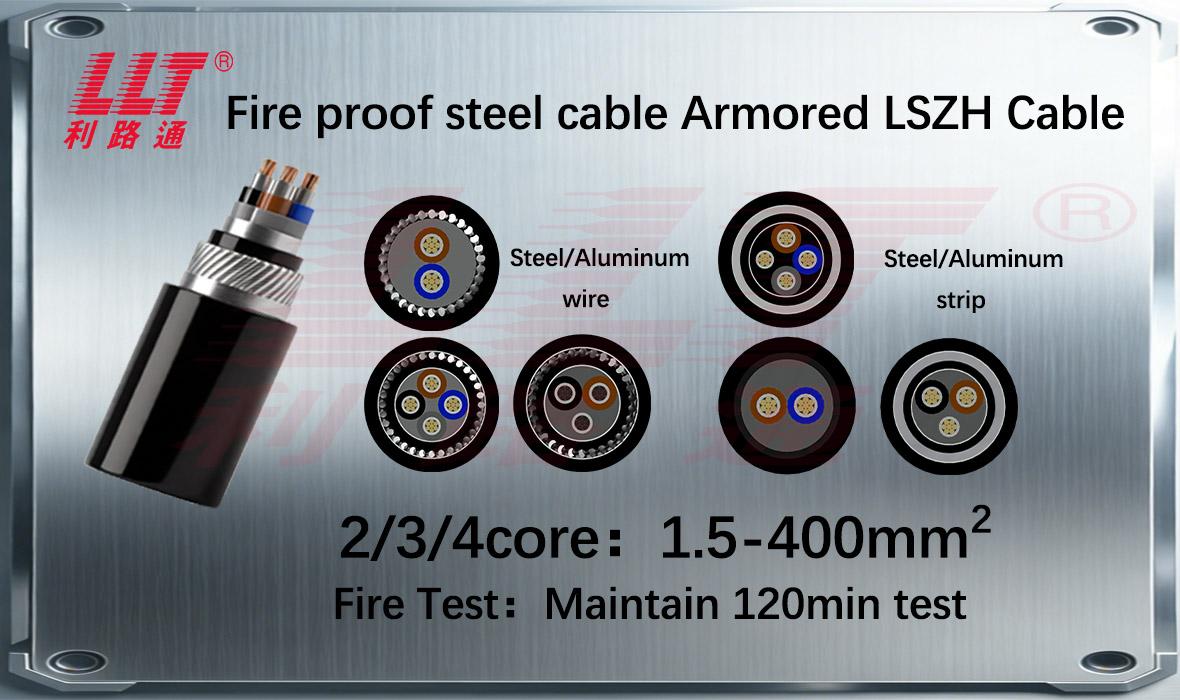

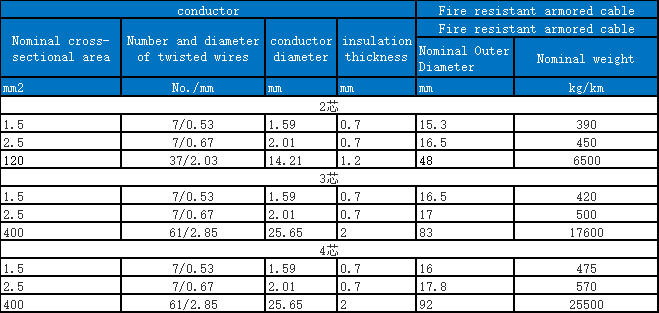

CONSTRUCTION ofFire resistant armored cable：

Conductor:

Number of cores: 2-4 cores

1.5mm2-400mm2: Class 5 solid conductor according to BS EN 60228

Insulation: Ceramic silica gel

Drain:Tinned Copper

Overall Screen: AL/PET (Aluminium/Polyester Tape),

Sheath: Low Smoke Zero Halogen (LSZH)

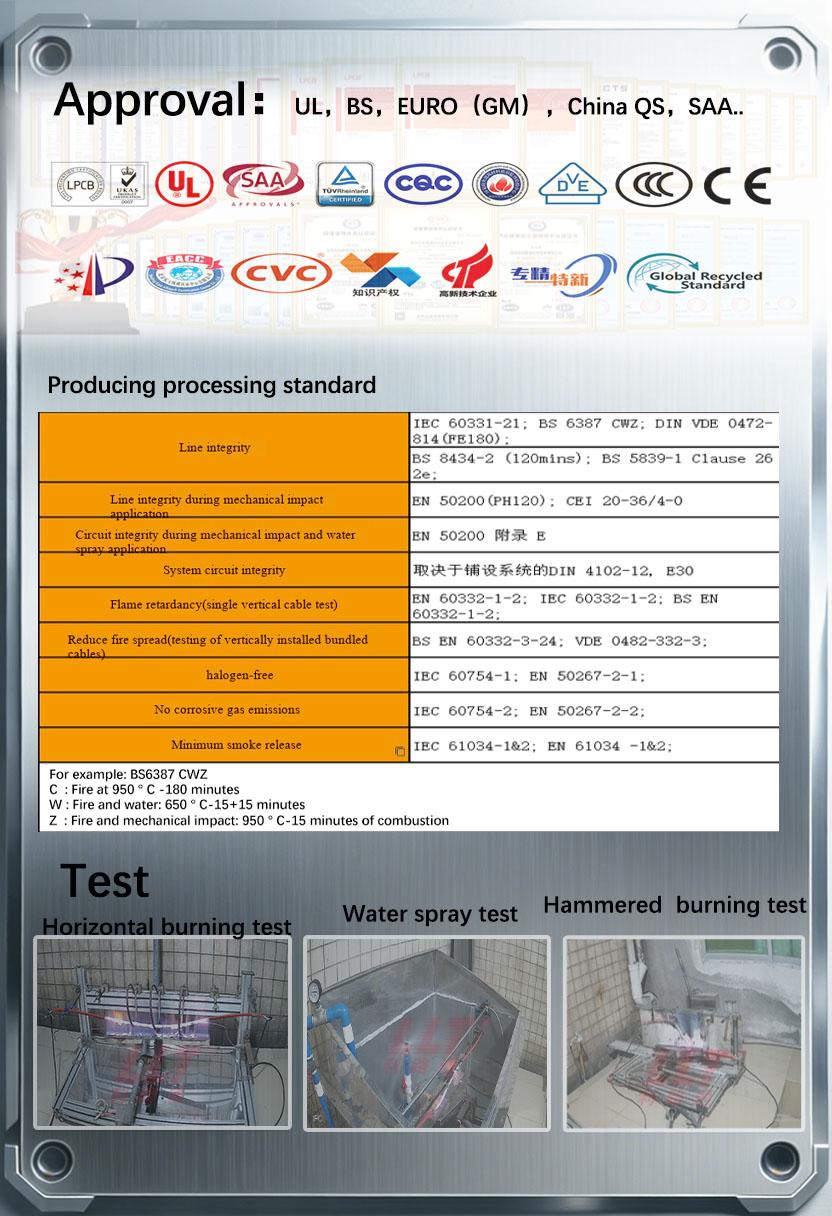

STANDARDS of Fire resistant armored cable

✮ Smoke density：BS EN 61034-2:2005+A2:2020
✮ Corrosive and acid gas：EN 60754-1: 2014
✮ Flame propagation on a single cable：EN 60332-1-2:2004
✮ Fire resistance(single cable)：BS6387、BS EN50200、BS 8434-2
✮ Fire resistance time:Maintain 120min test

CHARACTERISTICS ofFire resistant armored cable

Minimum Bending Radius: 10 times cable of outer diameter

Should not be installed at temperatures below 0°C or above +50°C

For more information, please consult members of the lilutong wire and cable sales team

Voltage Rating:0.6/1000 V

working temperature: -40°C to +90°C

Outer sheath comes in a choice of:

Outer sheath color:

GreyWhiteOrangeBlack

E-Bare Earth conductor:

2 core

BrownBlue

3 core

BrownBlackYellowGreen

or

BrownBlackGrey

4 core

Product Application of Power Cable

It is suitable for power connection of various household appliances, mobile appliances, various instruments and power lighting. It can be used in Germany, France, the Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Spain, Sweden and other EU countries.

Packaging information

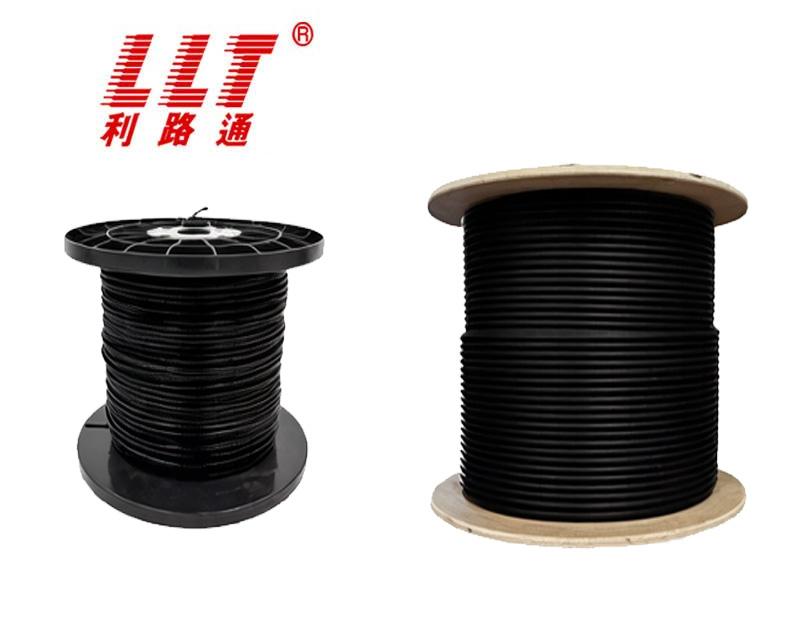

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

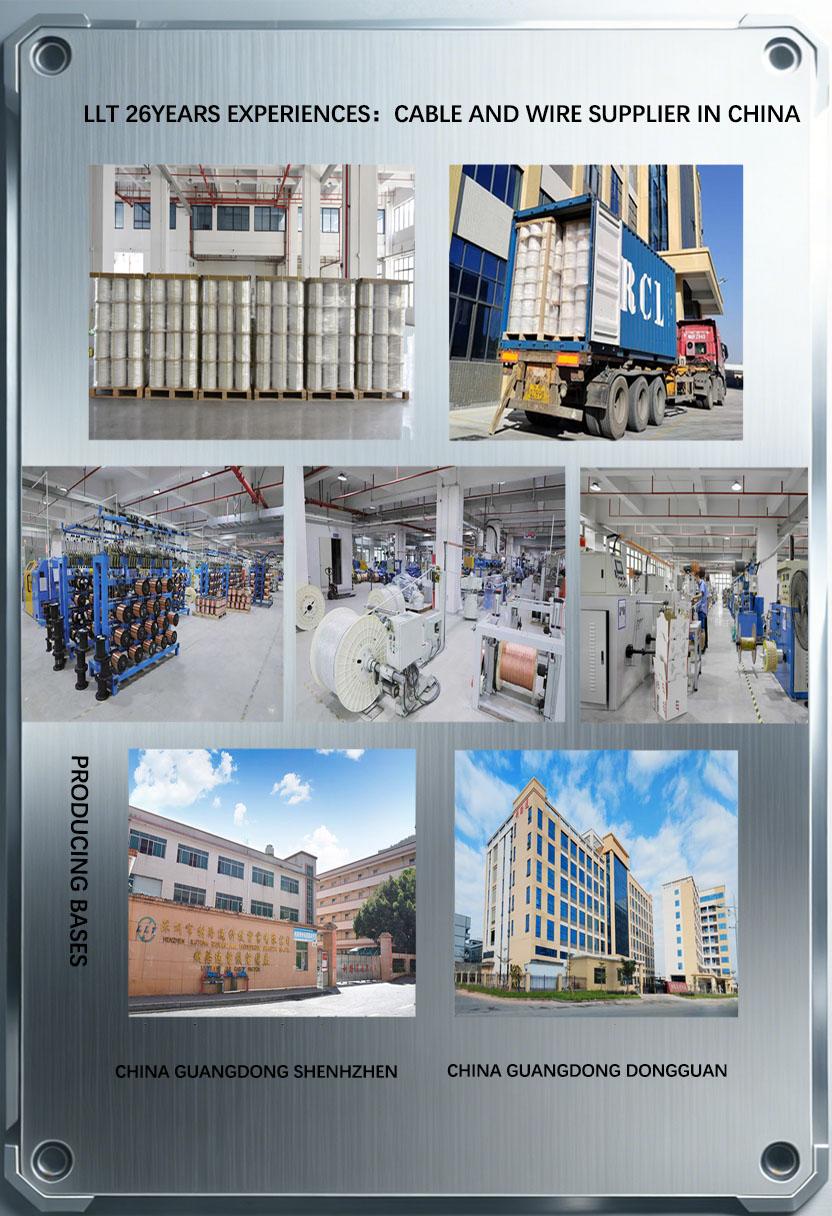

factory information

Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection
Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
7*24 hours after-sales service-professionals provide you with services and consultations around the clock
We can also provide OEM and ODM services

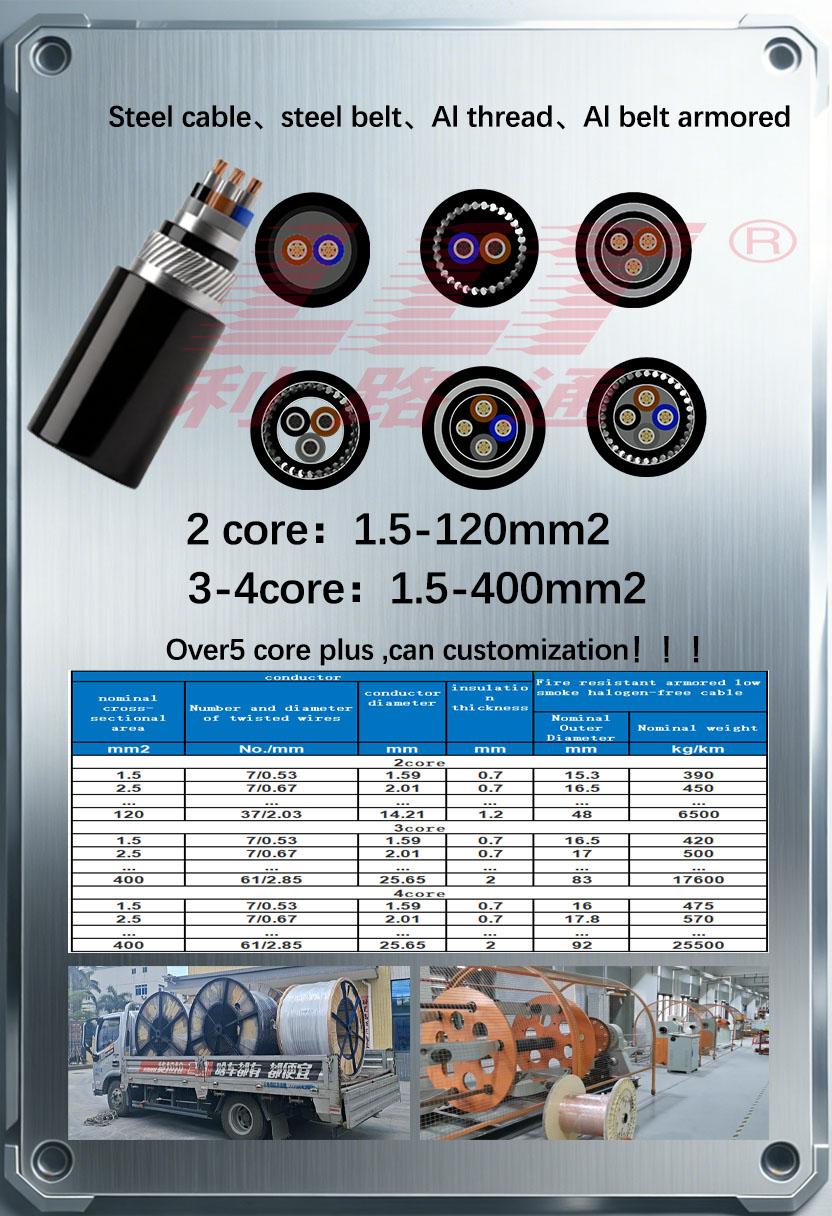

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
			Min.	Max.	BC	TC
2×0.5	0.5	0.6	4.6	5.9	39	40.1	0.011
			3.0×4.9	3.7×5.9
2×0.75	0.5	0.6	4.9	6.3	26	26.7	0.01
			3.2×5.2	3.8×6.3
3×0.5	0.5	0.6	4.9	6.3	39	40.1	0.011
3×0.75	0.5	0.6	5.2	6.7	26	26.7	0.01

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC	Min. Insulation Resistance at 70℃ （MΩ·KM）
2×0.75	0.6	0.8	5.7	7.2	26	26.7	0.011
2×1.0	0.6	0.8	5.9	7.5	19.5	20	0.01
2×1.5	0.7	0.8	6.8	8.6	13.3	13.7	0.01
2×2.5	0.8	1	8.4	10.6	7.98	8.21	0.0095
3×0.75	0.6	0.8	6	7.6	26	26.7	0.011
3×1.0	0.6	0.8	6.3	8	19.5	20	0.01
3×1.5	0.7	0.9	7.4	9.4	13.3	13.7	0.01
3×2.5	0.8	1.1	9.2	11.4	7.98	8.21	0.0095
4×0.75	0.6	0.8	6.6	8.3	26	26.7	0.011
4×1.0	0.6	0.9	7.1	9	19.5	20	0.01
4×1.5	0.7	1	8.4	10.5	13.3	13.7	0.01
4×2.5	0.8	1.1	10.1	12.5	7.98	8.21	0.0095
5×0.75	0.6	0.9	7.4	9.3	26	26.7	0.011
5×1.0	0.6	0.9	7.8	9.8	19.5	20	0.01
5×1.5	0.7	1.1	9.3	11.6	13.3	13.7	0.01
5×2.5	0.8	1.2	11.2	13.9	7.98	8.21	0.0095
