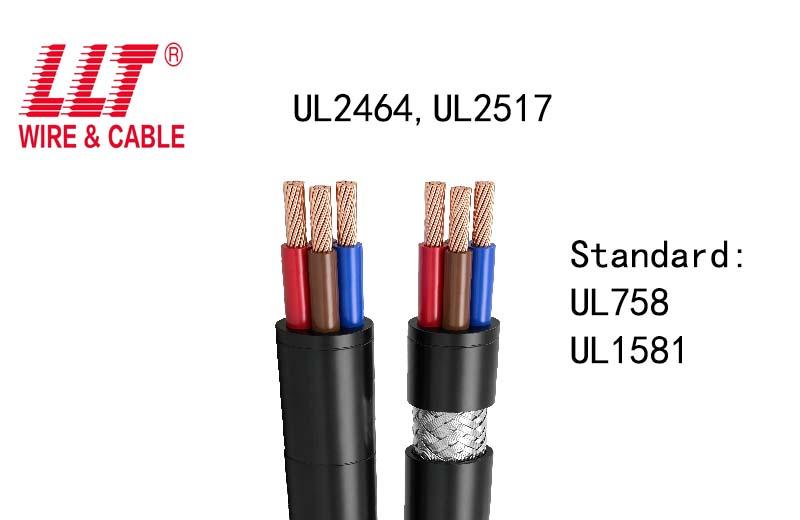

UL758-UL1581Cable

Home > Products > UL Power Cable > UL758-UL1581Cable >

UL2570/UL2586/UL2587

Essential information

Brand: LLT
Place of origin: Shenzhen, China
Specification: 100M / 500m per roll
Packaging method: roll / wooden shaft / carton / pallet
Place of shipment: Shenzhen
Mode of transportation: Sea / land / air
Payment method:T / T, L / C, D / P
Starting quantity: 5000m
Daily production: 1000000m
Other services:OEM/ODM

Product overview of Cable：

Multi-core flexible PVC control/power cables suitablefor high-reliability scenarios such as internal wiring ofindustrial automation equipment, machine tools, robotpower and control lines, internal wiring of controlcabinets and distribution boxes, sensor/actuator signallines, aviation, automotive electronics, etc.

CONSTRUCTION of Power Cable

insulation:

PVC insulation

Conductor:

2 to 9 cores, 26~10AWG

Annealed class 5 soft BC

STANDARDS of Cable

✮UL758
✮UL1581

CHARACTERISTICS of Cable

Voltage Rating:MULTI-CORE FIEXIBLE POWER cable

Temperature limits: 80°C ,90°C,105°C

Operating voltage:600v/1000v

Sheath: Flame Retardant PVC

Outer sheath comes in a choice of:

Outer sheath color:

GreyWhiteOrangeBlack

E-Bare Earth conductor:

2 core

BrownBlue

3 core

BrownBlackYellowGreen

or

BrownBlackGrey

4 core

BrownBlackGreyYellowGreen

or

BlueBrownBlackGrey

5 core

BlueBrownBlackGreyYellowGreen

Product Application of Cable

Mainly used as cables for emergency lighting, fire observation, signal sensing sensor systems, exhaust fan systems, communication and reporting systems, equipment control systems, fire pumps, and fire alarm system circuits.

Packaging information

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

factory information

Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection

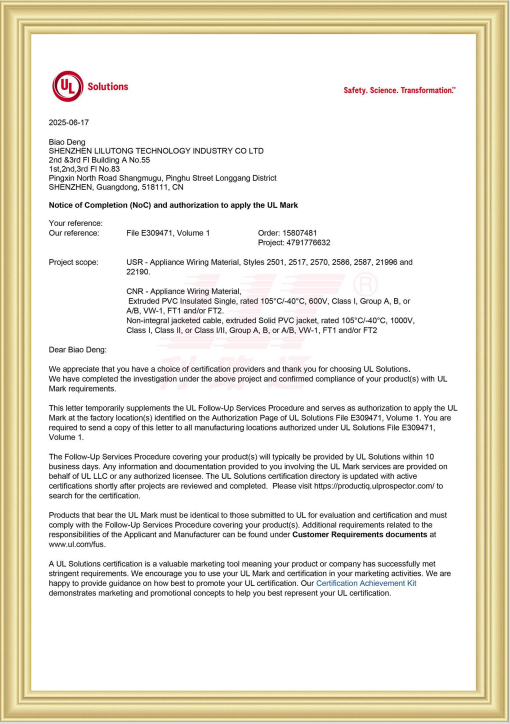

Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
7*24 hours after-sales service-professionals provide you with services and consultations around the clock
We can also provide OEM and ODM services

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
			Min.	Max.	BC	TC
2×0.5	0.5	0.6	4.6	5.9	39	40.1	0.011
			3.0×4.9	3.7×5.9
2×0.75	0.5	0.6	4.9	6.3	26	26.7	0.01
			3.2×5.2	3.8×6.3
3×0.5	0.5	0.6	4.9	6.3	39	40.1	0.011
3×0.75	0.5	0.6	5.2	6.7	26	26.7	0.01

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC	Min. Insulation Resistance at 70℃ （MΩ·KM）
2×0.75	0.6	0.8	5.7	7.2	26	26.7	0.011
2×1.0	0.6	0.8	5.9	7.5	19.5	20	0.01
2×1.5	0.7	0.8	6.8	8.6	13.3	13.7	0.01
2×2.5	0.8	1	8.4	10.6	7.98	8.21	0.0095
3×0.75	0.6	0.8	6	7.6	26	26.7	0.011
3×1.0	0.6	0.8	6.3	8	19.5	20	0.01
3×1.5	0.7	0.9	7.4	9.4	13.3	13.7	0.01
3×2.5	0.8	1.1	9.2	11.4	7.98	8.21	0.0095
4×0.75	0.6	0.8	6.6	8.3	26	26.7	0.011
4×1.0	0.6	0.9	7.1	9	19.5	20	0.01
4×1.5	0.7	1	8.4	10.5	13.3	13.7	0.01
4×2.5	0.8	1.1	10.1	12.5	7.98	8.21	0.0095
5×0.75	0.6	0.9	7.4	9.3	26	26.7	0.011
5×1.0	0.6	0.9	7.8	9.8	19.5	20	0.01
5×1.5	0.7	1.1	9.3	11.6	13.3	13.7	0.01
5×2.5	0.8	1.2	11.2	13.9	7.98	8.21	0.0095
