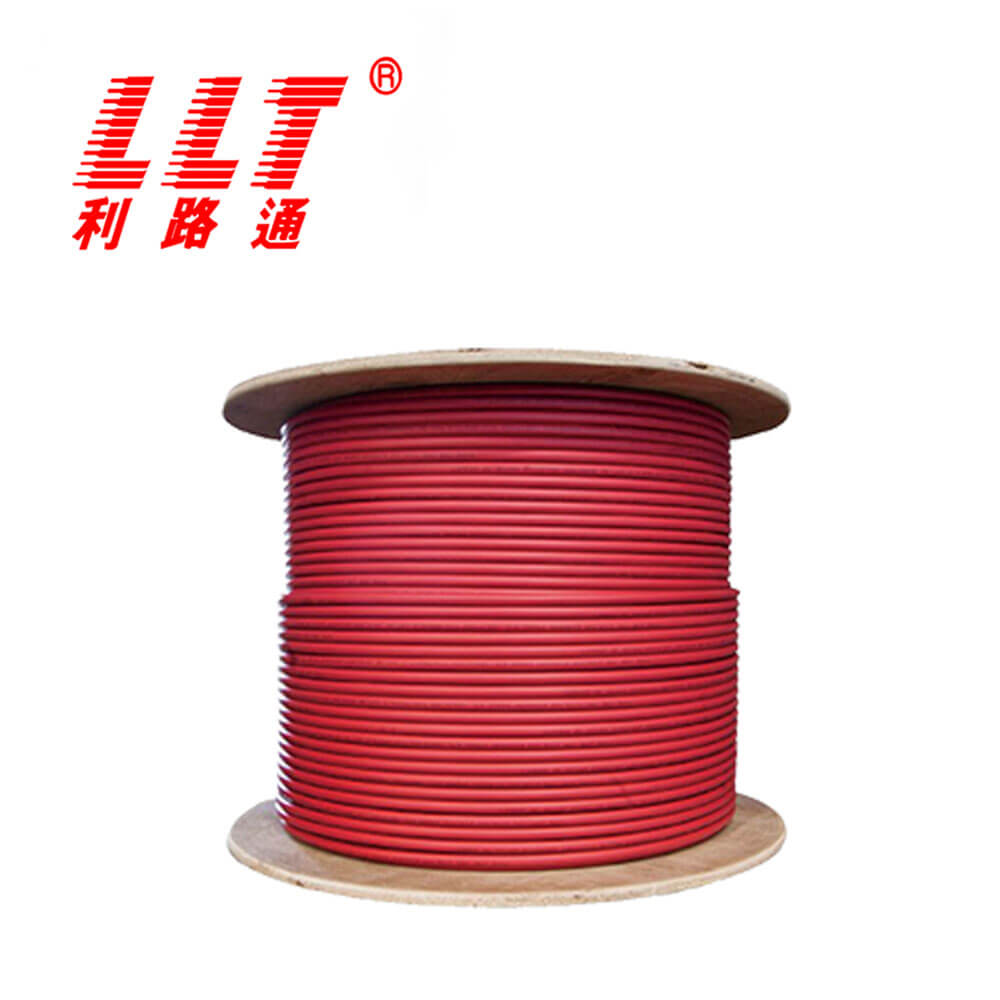

6C/21AWG stranded FPLR Fire Alarm Cable

Essential information

Brand: LLT
Place of origin: Shenzhen, China
Specification: 100M / 500m per roll
Packaging method: roll / wooden shaft / carton / pallet
Place of shipment: Shenzhen
Mode of transportation: Sea / land / air
Payment method:T / T, L / C, D / P
Starting quantity: 5000m
Daily production: 1000000m
Other services:OEM/ODM

Send message to us

Cable construction:

Conductor:

21 AWG stranded Bare Copper

Nom.Dia:0.0323±0.0003"(7/0.27±0.008mm)

Insulation:

Type.Polypropylene

Dia over Insulation:0.0579±0.0040" nom.(1.47±0.10mm)

Drain Wire:7/0.16±0.008mm stranded Tinned-Copper

Shield:0.001"(0.025mm)thick Aluminum/Mylar

Color Code:

1.Brn 2.Blue 3.Blk 4.Gry 5.Grn 6.Red

Jacket:

Type.PVC

jacket color : red or white etc

Dia over Jacket:0.2280±0.0118"(5.8±0.3mm)

Cable Marking:

Fire Alarm Cable (UL) E....... FPLR 105℃ 6C/21AWG LLT date

Electrical Properties:

Temperature Rating：-20℃～+105℃
Operating Voltage：300 Volts max
Withstand voltage test ：DC: 2500V / 2S, no breakdown
Minimum insulation resistance ：100 MΩ/KFT at15.6℃
Maximum resistance：43.6 0hms/KM at 20℃

Standard:

All these cables comply to:
Application of insulation ：UL 1581
Inner Conductor Diameter：UL 1581
Insulation Type ：UL1581
Flame Propagation(single Insulation)：UL2556
Flame Propagation(Multiple cables) ：UL1666
Sheath ：UL 1581

Cross Section:

Applications:

Fire-fighting cables are mainly used for emergency lighting, fire observation, signal sensing system, blower system, communication call system, control equipment system, fire pump and fire alarm system circuit cables, etc.

For example: ★ Office ★ School ★ Airport ★ Underground and tunnel ★ Railway station ★ Computer center ★ Alarm system ★ Traffic control system ★ Fire protection system

Packaging information

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

Factory information

Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection
Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
7*24 hours after-sales service-professionals provide you with services and consultations around the clock
We can also provide OEM and ODM services
