Standard fire alarm and security cable. Soft Skin Standard Fire Resistant Cables for general use in fire detection, fire alarm, voice alarm, and emergency lighting circuits. For example: ★ hotels ★ theaters and cinemas ★ museums ★ hospitals ★ shopping centers ★ skyscrapers ★ offices ★ schools ★ Airports★ underground and tunnel ★ railway station ★ computer center ★ alarm system ★ traffic control system ★ fire fighting system

These cables are designed to carry on working for a specific length of time under fire conditions.

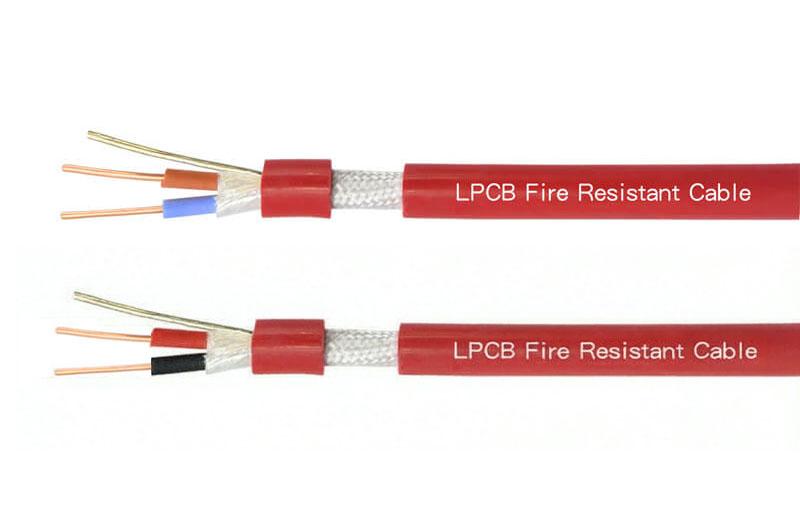

CONSTRUCTION of Fire Resistant Cable

Conductor:

Number of cores: 2-4 cores

1.0mm2-2.5mm2: Class 1 solid conductor according to BS EN 60228

4mm2: Class 2 stranded conductor according to BS EN 60228

Insulation: Ceramic silica gel

Drain:Tinned Copper

Overall Screen: AL/PET (Aluminium/Polyester Tape),

Sheath: Low Smoke Zero Halogen (LSZH)

STANDARDS of Fire Resistant Cable

✮ Smoke density：BS EN 61034-2:2005+A2:2020
✮ Corrosive and acid gas：EN 60754-1: 2014
✮ Flame propagation on a single cable：EN 60332-1-2:2004
✮ Fire resistance(single cable)：BS6387、BS EN50200、BS 8434-2
✮ Fire resistance time(single cable)：PH30-PH120

CHARACTERISTICS of Fire Resistant Cable

Minimum Bending Radius: 12 times cable of outer diameter

Should not be installed at temperatures below 0°C or above +40°C

For more information, please consult members of the lilutong wire and cable sales team

Voltage Rating:300/500V

working temperature: -40°C to +90°C

Outer sheath comes in a choice of:

Outer sheath color:

RedWhiteOrange

Core insulation color:

2 core

BrownBlue

3 core

BrownBlackGrey

4 core

BlueBrownBlackGrey

Packaging information of Fire Resistant Cable

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.
